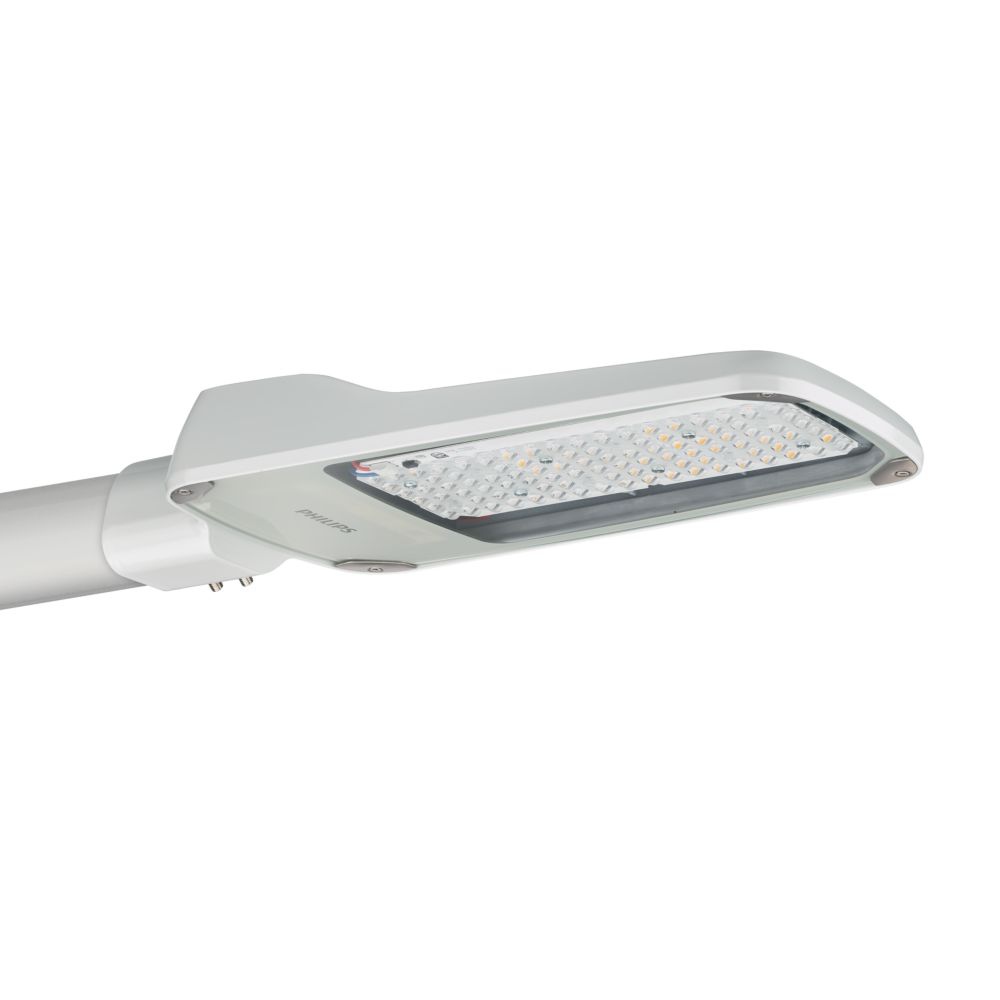

Brp102 Led55/740 Dm 42-60a

Kod Elektriko: 90394 | Kod Philips: 8718696998175

Lampa uliczna led, latarnie ledowe, oprawy drogowe 230V

Cena

1 029,51 zł brutto
837,00 zł netto

Zapytaj o produkt

Karta produktu PDF

Ocena

5.0 / 5 (1 ocena)

Opis Pytania i odpowiedzi Gwarancja

Parametry wariantu
Lamp family code	LED55 [ LED module 5500 lm]
Light source color	740 neutral white
Driver included	Yes
Driver/power unit/transformer	Power supply unit
Number of gear units	1 unit
Connection	Push-in connector and pull relief
Luminaire light beam spread	-
Protection class IEC	Safety class I
CE mark	CE mark
Constant light output	No
Number of products on MCB of 16 A type B	11
Input Frequency	50 to 60Hz
Input Voltage	220 to 240V
Inrush current	46A
RoHS mark	RoHS mark
Dimmable	No
Housing Material	Aluminum die-cast
Optical cover/lens material	Tempered glass
Power Factor (Min)	0.98
Reflector material	-
Fixation material	Aluminum
Ingress protection code	IP65 [ Dust penetration-protected, jet-proof]
Optical cover/lens finish	Clear
Overall diameter	520mm
Overall height	79mm
Mech. impact protection code	IK08 [ 5 J vandal-protected]
Maximum dim level	Not applicable
Product family code	BRP102 [ CoreLine Malaga LED large]
Optical cover/lens type	Flat glass
Light source engine type	LED
Mounting device	Universal for diameter 42 to 60 mm adjustable
Optical cover/lens shape	Flat
Overall length	493mm
Overall width	217mm
Effective projected area	0.22526m²
Useful life L80B10	60000h

Product family information

The CoreLine Malaga LED family is designed for general Road, Street and Residential application.The family consists of two sizes and uses a Philips standardized design LED engine as light source and a Philips Xitanium fixed output outdoor driver. Quality you can rely on.CoreLine Malaga LED has been designed as efficient as possible, performing the same task as the SON-T 50, 70, 100 and 150W luminaires it replaces; provide the right amount of light in the right place. The medium beam (DM) optic delivers an efficient distribution onto the road. The combination results in interesting energy savings which reduce operating costs significantly. 50% energy reduction is realistically possible.At the same time, the investment in a CoreLine Malaga LED luminaire is on the same level as an old SON-T luminaire including the first lamp. As the LED light engine in CoreLine Malaga LED will last the life time of the luminaire, just by saving the multiple lamp replacements needed with SON-T will already return the investment in it.Ease of installation is obtained through the extended gland feature; the luminaire does not need to be opened to connect the power cable. At the same time, the flat glass cover can be removed to allow access to the driver for maintenance if required. Adding up the functions and features truly make a choice for CoreLine Malaga LED an easy decision. As a member of the CoreLine family, Malaga LED is easy and quick available thru Philips Partners near you. Simply efficient.

Features

Direct, one on one, replacement for SON-T lamps in Road, Street and Residential applications.Purpose, dedicated to LED, robust design including Philips standardized LED light platform and fixed output Philips Xitanium outdoor driver.Easy installation through the extended gland. No need to open the luminaire.1000.000 hours working life L70B10 (or 60.000 hours L80B10).

Applications

General outdoor; Road, Street and Residential areasIndustrial areas or parking lots.Public transport such as bus or tramway stops.

Dobór źródła światła do oprawy - przydatne informacje.

Przy zakupie na kwotę poniżej 180zł netto zastrzegamy prawo do doliczenia opłaty logistycznej w wysokości 15 zł netto.

Gwarancja

Okres gwarancji: na oprawy oświetleniowe 1 rok, 3 lata lub 5 lat w zależności od grupy produktów (szczegóły w załącznikach obok)

Sposób realizacji: naprawa lub wymiana produktu na nowy, wolny od wad
